DM Plant
Demineralization or Deionisation is the process of removing minerals salts from water by using the ion exchange process. With most natural sources it is possible to use Demineralisation and produce water of a higher quality than conventional They are used for various industrial purposes. It provides almost distilled quality water by ion exchange process.
Mixed Bed Plant
Mixed Bed Plant is used to produce water of most stringent quality. Available capacities of above all products : 1 M3, 5 M3, 10 M 3, 20 M3, 50 M3, 100 M3 / hour & more.
Filteration
Depending upon the type of Filtering Media used and the impurities being eliminated, the Filtration Plants can be broadly categorized as follows.
Pressure Sand filter (PSF):
It is used for separating water suspended solid. For better operation of filter, suspended soild should be coagulated. The advantages of pressure filter are high speed of filtration, less space, low prevent heat loss after heat loss after the warm or hot lime process.
Activated carbon filter (ACF):
Carbon filters are most effective at removing chlorine, sediment, and volatile organic aompunds ( VOCs) from water.
Dual Media Filter (DMF) :
This comprises off sand and anthracite as filtering media and polishing media respectively. Sand is used for removing the suspended particles and anthracite removes the odor and colour etc to make the water fit for various application. Pebbles and gravels are provided to support to both the media.
Disc Filter :
Disk filters are good removing both particulates, like sand, and organic matter. A disk filter consists of a stack round, grooved disks. Each disk has grooves in both sides. The water is forced between the grooved disks, and the organic matters or sediments are accumulate on the outer face of the stacks discs allowing clean water to flow through the stacks disc out of the filter.
Micron cartridge Filter (MCF):
Size of cartridge : 10” , 20”, 30”, 40” [Dia – 2.25” & 4.50”]
Types of cartridge :
1. Spun Cartridge : 0.5, 1.5, 10, 25 Micron
2. Wound Cartridge : 0.5, 1.5, 10,25 Micron.
Available capacities of above all products : 1 M3, 5 M3, 10 M3, 20 M3, 50 M3, 100 M3 / hour & more.
We also deal in Swimming pool Filtration Plant and Sewage Treatment plant
MEMBRANE SYSTEM
Reverse Osmosis System:
We offer wide range of reverse osmosis system that works on membrane desalination process. The greatest advantage of our MEC PURE range of R.O . is that no harmful chemicals are carried over the final water. We also offer specially designed R.O. which doesn’t require antiscalant system.
Features :
- Produce high- quality demineralised water
- Low water- rejection rate.
- Most modern membrane techonology
- Low operational and maintenance costs

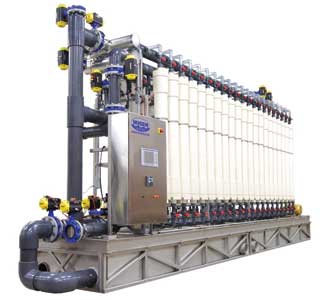

Ultra Filration :
For complete removal of oils, particulate matter, bacterica and suspended solids large macromolecules, proteins & viruses; ultra filtration is required.

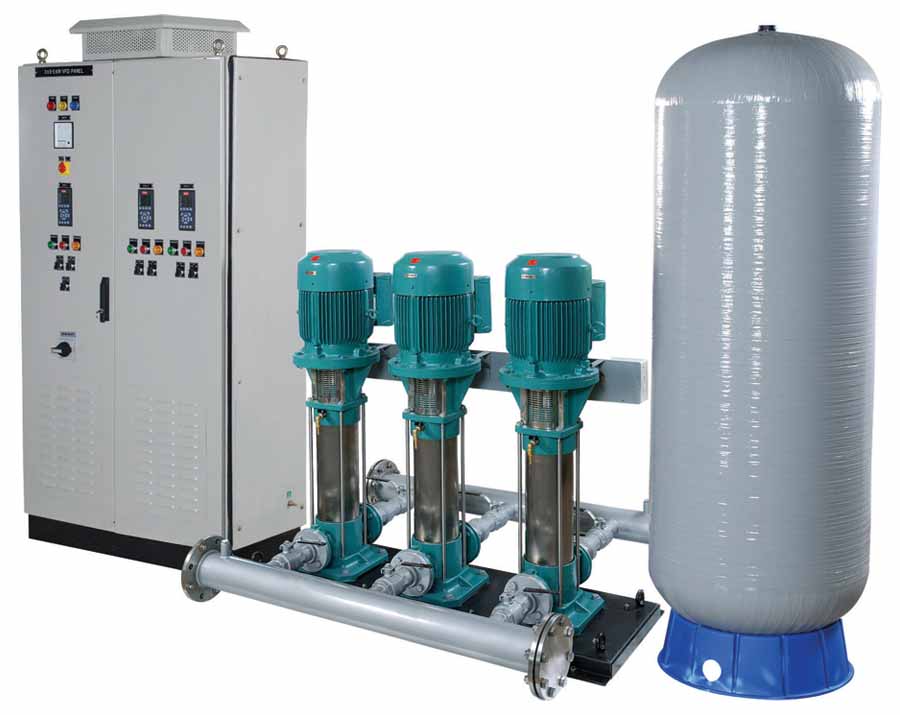

Hydropneumatic System
Pressure Boosting Systems are designed to maintain water pressure to your Industrial water supply.
Available Capacities: 1 Point 1000 points.

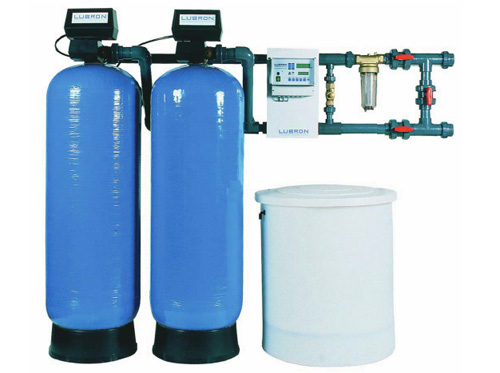

Water Softner
Types of water softner
Water Softener module is a water softening unit which works on the principle of Ion Exchange Process in which the hardness causing ions such as Calcium and magnesium are exchanged with sodium ions.
The softening resin is regenerated with the brine solution and this can be done either automatically or manually by a multi port valve.
- Manual
- Semi Automatic
- Volumatic Automatic(12 v DC/1 Amp)
- 24/7 : Twin tank design allows our systems to backwash without ever going offline for round the clock operation.
- Metered Regeneration : Meters Water use to accurately determine when it's time to generate with watch-like precision, resulting in less waste and greter savings. So when you go on vacation so does your system
- Soft Water Rinse : Uses only soft, conditioned water to clean itself,which prolongs the life of the system.Because our systems are engineered to last.
- Countercurrent Regeneration : Unlike most other softners, our system regenerate from the bottom up for a more even and efficient use of resin beads. Resulting in less waste, less salt and a longer lasting system.
- Specialy designed Brine Tank: Unlike most other softners, our system regenerate from the bottom up for a more even and efficient use of resin beads. Resulting in less waste, less salt and a longer lasting system.
- No Need Of Manpower
- No Need of Switch On / Off the system.
- No Need to add water in Brine /Salt tank
- No Need to backwash & rinse manually
- No Watage of salts as works on volume base.
Features
- MS vessels with Epoxy or rubber lining or FRP with food grade LLDPE lining
- Filter vessel designed at an operating pressure of 5kg/cm2
- uPVC frontal piping with MPV or MS with Epoxy painted frontal
- Hub and Lateral Distribution system for FRP and MS Epoxy painted for MS vessels
- NSF 61 Certified composite FRP vessel
Benefits
- Non corrosive and improved service time
- High reliability and product of assured quality
- Non corrosive frontal piping arrangement with Auto / Manual multiport valve for easy operation.
- Non corrosive Poly Propylene hub and lateral distribution system that ensure uniform filtration across the filter
- Filter vessel suitable for potable water application
